SLUDGE BRIDGE

• Clarifier hot dip galvanized bridge AISI316 peripheral driven
• Scrubber immersed power: 400V / 50Hz
• Motor protection: IP55 & insulation class F
• Diameter: 25 m, side water depth: 3.12 m

POLYMER PREPARATION UNIT

• Production rate: 1000 L/h of polymer solution
• Solution concentration: 0.05% – 0.5%
• Three chambers, SS304/SS316 or HDPE
• Dimensions: 2 m × 1 m × 1.5 m
• Speed: 50–150 RPM, power: 0.5–1 kW

DAF SYSTEM

• Removes oils, grease, solids & suspended flocculants
• Micro-bubbles in the 30–50 micron range
• Single movement separator rotating against hydraulic flow
• Minimizes skimming distance & eliminates solids carry-over

CENTRIFUGE TANK

Separates solid particles from liquid suspensions by centrifugal force, enabling efficient sludge dewatering and clarified liquid effluent.

DEWATERING SCREW PRESS

High-efficiency screw press for sludge dewatering, reducing sludge volume and optimizing disposal and handling.

DOSING PUMPS

Precision dosing pumps for accurate chemical injection in different treatment stages and process conditions.

BELT PRESS

Continuous belt press system achieving high dry solids content for optimized sludge handling and disposal.

CONTROL HEAD

Intelligent control head systems to manage process parameters and keep plant performance stable and reliable.

MBBR System Compact Unit

MBBR technology develops biomass on carriers to produce high-quality effluent using compact reactors, enabling reuse of treated wastewater for fire-fighting or secondary irrigation.

AIR DIFFUSER

Transfers oxygen to support aerobic processes, promote microbial growth, degrade organic matter, improve mixing, control odors, suspend solids, and regulate temperature.

SBR

Sequential Batch Reactor technique where conditions are cycled in the same tank over time, providing flexible and efficient wastewater treatment.

BAR SCREEN

• Bar width: 1/4 to 5/8 inches
• Spacing: 5/8 to 3 inches
• Depth: 1 to 1.5 inches
• Slope: 30–45° from the vertical

Multimedia Filter

• Operating pressure: 1 bar
• Maximum pressure: 5 bar
• Material & coating: fiberglass
• Media: sand, gravels, carbon

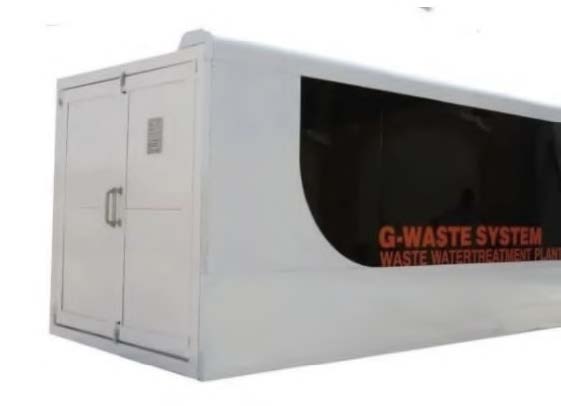

G-WASTE SYSTEM

• Temperature: 60 °C
• Operation: automatic
• pH range: 2–14
• Power: 380 V

HIGH FLOW FILTER

High flow filtration for large water volumes with low pressure drop and high removal efficiency.

VESSEL

Pressure vessels suitable for various media and operating conditions, forming the backbone of many filtration systems.

DRUM FILTER

Continuous solid-liquid separation for efficient removal of suspended solids and improved effluent quality.

RO SYSTEM

Removes most dissolved solids from water with porosity around 0.001 microns, also contributing to bacteria and virus removal.

WATER PURIFICATION SYSTEM

Complete purification system components integrated with pre- and post-treatment units for different capacities and applications.

WATER SOFTENER

Reduces hardness, protects equipment, and improves water quality across different industrial and commercial uses.

RO MEMBRANE

High-performance RO membranes available in different energies, models, and brands to fit a wide range of desalination needs.
